NEW PRODUCTS!

Smart, Safe, and Efficient - Automate Your Building with EXTA

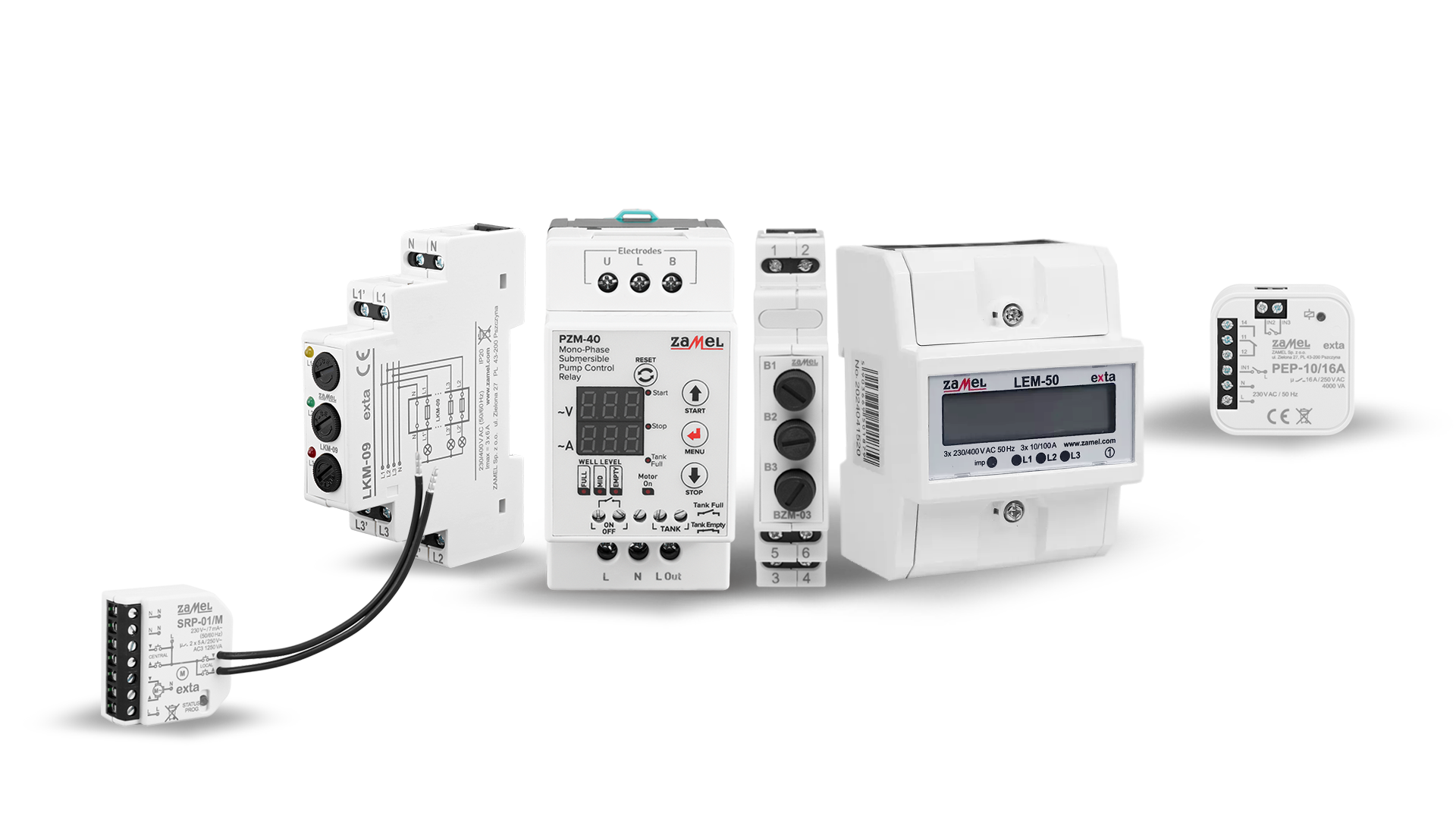

NEW PRODUCTS in building automation EXTA by ZAMEL:

MODULAR FUSE SOCKET • SUBMERSIBLE PUMPS CONTROLLER • ENERGY COUNTER • POWER INDICATOR PROTECTED WITH A FUSE • POTENTIAL FREE RELAY MODULE • WIRED MINIATURE ROLLER SHUTTER CONTROLLER

Building automation by Zamel can be found not only in residential houses or appartments, but was also chosen as an excellent option for public buildings like hospitals, hotels, schools and factories.

Investing in building automation contributes to increasing safety, energy efficiency and automation of production processes, which allows for reducing operating costs and minimizing the risk of failure. Thanks to these advanced technologies, building automation is the substructure of modern, intelligent buildings that are able to meet the highest standards of efficiency, safety and comfort.

MODULAR FUSE SOCKET

BZM-03

SUBMERSIBLE PUMPS CONTROLLER

PZM-40

POWER INDICATOR PROTECTED WITH A FUSE

LKM-09-40

POTENTIAL FREE RELAY MODULE

PEP-10/16A

ELECTRIC ENERGY COUNTER

LEM-50 LCD 4mod

WIRED MINIATURE ROLLER SHUTTER CONTROLLER

SRP-01/M

• after removing or blowing the fuse, it provides a visible break in the circuit,
• 3 fuse modules in a single-module housing,
• maximum protection current: 3x6.3 A for 400 V,
• elevator connectors enable the connection of wires with a maximum cross-section of 2.5 mm²,
• factory insert used in the structure: 3x500mA,
• mounting on TH 35 rail.

• 3-phase power indicator with module access,
• after removing or blowing the fuse, it provides a visible break in the circuit,
• 3 fuse modules in a single-module housing,
• elevator connectors enable the connection of wires with a maximum cross-section of 2.5 mm²,
• the maximum protection current should not exceed a total of
• 6.3 A.

• the product can be used to control heating devices (ON/OFF type) by connecting a relay to the regulator,
• relay 16A,
• the product can be used to control a solid fuel boiler (which requires an NC/COM contact) by connecting a temperature regulator to the relay,
• small size,
• the product is used when connecting a central strip with more actuators or devices other than thermoelectric actuators, connected to the central strip to relieve its contacts (e.g. pumps, actuators, electric heating mats).

• designed for wired control of drives of window blinds, awnings, gates (single-phase electric motors 230 V AC),
• energy-saving device, adapted for continuous operation,
• possibility of cooperation with the EXTA FREE system via the SRP-03 central roller shutter controller,
• local and central control inputs,
• comfort modes - upper and lower - ability to remember the position of the roller blind (e.g. half-height),
• easy installation in an installation box (Ø60 mm),
• possibility of cooperation with any role button (not equipped with illuminating elements).

• Maximum current 100A, base 10A,minimum 500 mA,
• measurement and display of consumed active energy in kWh,
• measurement in accuracy class 1,
• backlit LCD display,
• four-module housing,
• mounting on a TH-35 (DIN) rail.

• this is a control device for single-phase submerisable pumps,
• the device enables direct connection of pumps with a current up to 30A,
• it has built-in overvoltage, overcurrent, undercurrent and undervoltage protection,
• provides control of the liquid level in the main and expansion tanks,
• the modern processor design used in the device ensures high measurement precision.
